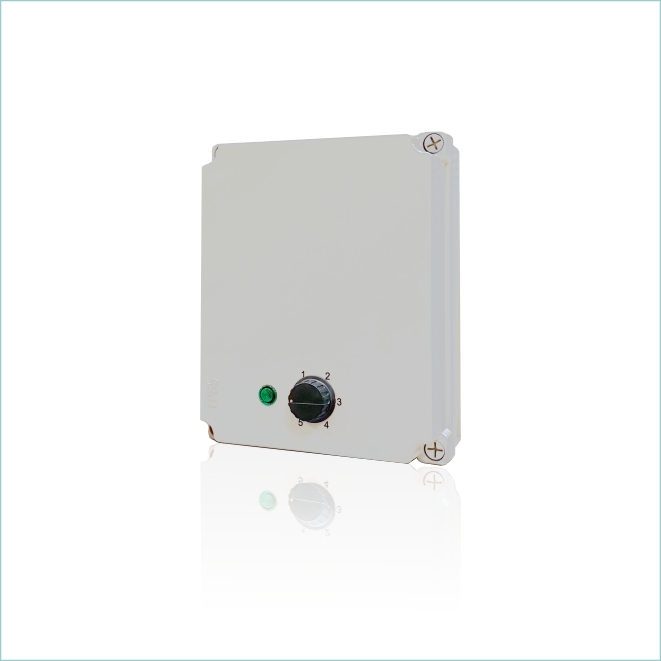

Transformer speed controllers RT ..
Transformer controllers RT .. are designed to change motor rotation speed by changing voltage. All controllers have an overheating protection function. The steps have fixed voltages and are switchable with a rotary switch. A single speed controller can control multiple motors if the total of all motors' power consumption does not exceed the maximum controller current.
TECHNICAL DATA
- 5-step motor rotation speed controller.
- Power supply: 400 VAC.
- Frequency: 50/60 Hz.
- Protection class: IP54 (RT 1.0..RT 5.0), IP 44 (RT 7.0..RT 14.0).
- Max. ambient temperature: 40°C.
- Max. controller temperature 70°C is limited with thermo protection.
